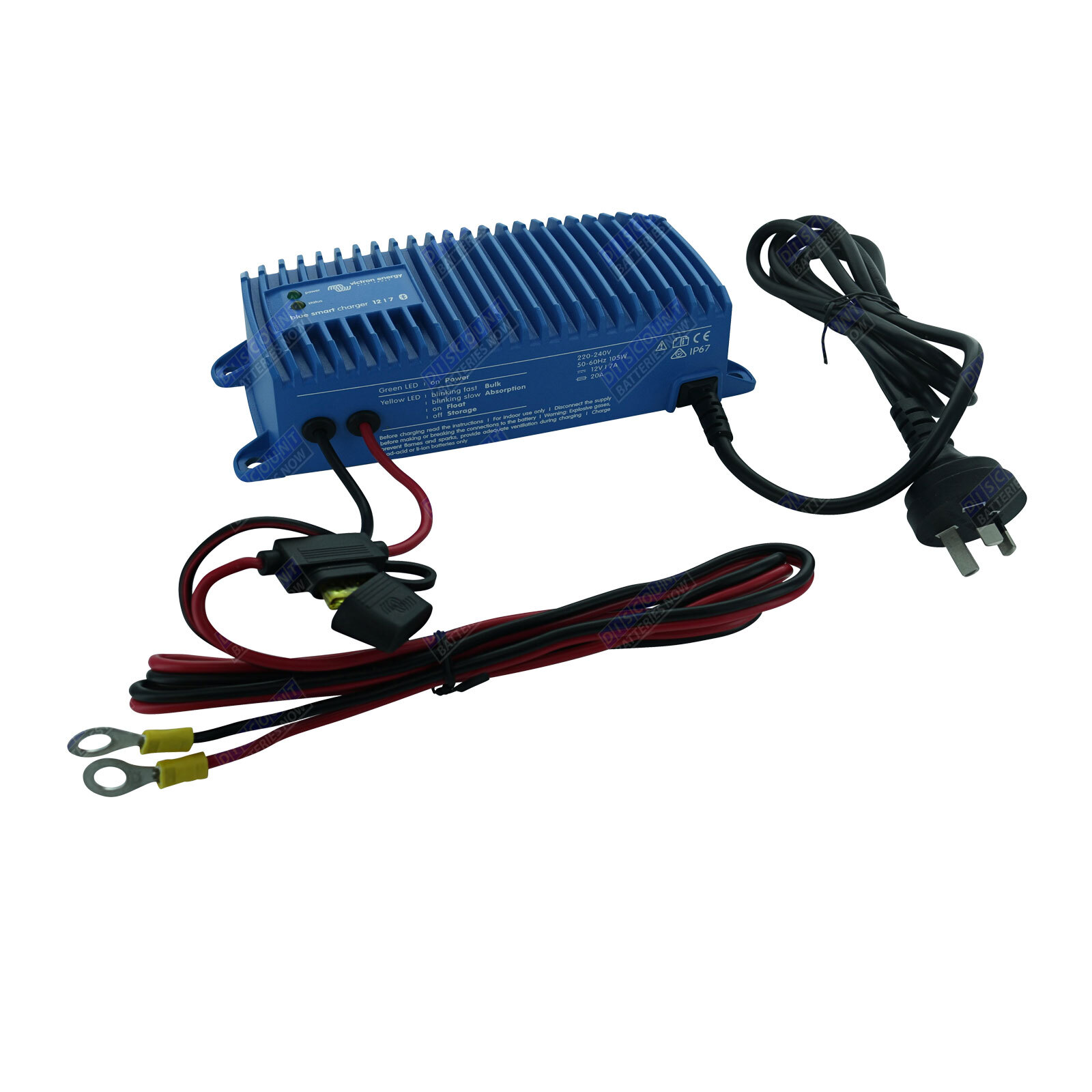

This IP67 Waterproof Smart Charger is ideal for your workshop, motor home, caravan or any wheeled vehicle.
You can look after your car, motorcycle, boat, jet ski, or any other application.
This Device is all controlled directly from your Smartphone, tablet or computer using the VictronConnect App.

Voltage: 12V

Charge Current: 7 AH

Dimensions:

Depth: 60mm

Width: 211mm

Height: 85mm

Specifications:

Battery Connection - Black and Red Cable of 1.5m with 20A Fusable Link and M8 Eyelets

230V AC Connection - Cable of 1.5m with CEE 7/7 Plug

Protection Category - IP67

Features:

Completely Encapsulated - Waterproof, Shockproof and Ignition Protected

The casing is made of cast aluminium and the electronics are moulded in resin

New industry standard with 92% efficiency or better, these chargers waste three to four times less heat.

Once the battery is fully charged, power consumption reduces to less than a Watt, some five to ten times better than the industry standard

Adaptive 5-stage charge algorithm: Bulk. Absorption, Recondition, Float and Storage

Microprocessor controlled - Apaptive Battery Management

The Adaptive feature will automatically optimise the charging process relative to the way the battery is being used

Reverse Polarity, Over Temperature & Short Circuit protections

Operating Temp Range: -20 to +60 deg celcius

Also charges Li-ion (LiFePO) batteries which are charged with a simple Bulk, Absorption, Float algorithm

Can be used in a hot environment such as a machine room. Output current will reduce as temperature increases up to 60°C, but the charger will not fail

Two LEDs for Status Indication: Yellow LED: Bulk Charge (blinking fast)
                                                   Absorption (blinking slow)
                                                   Float (solid)
                                                   Storage (off)
                                                   Green LED: Power On



SKU BPC120713016
Brand Victron Energy
Shipping Weight 1.9000kg
Unit Of Measure ea
